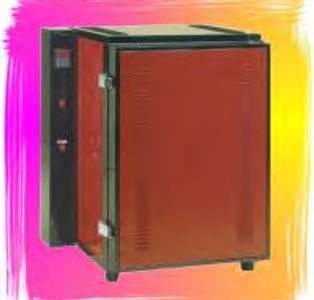

The furnace is used for heating foundry flasks according to the programme defined by the producers of casting compounds. Thermal insulation is made of ecological aluminosilicate fiber. The furnace is equipped with a programmer ensuring the implementation of two different programmes, sixteen cycles each, with the possibility of setting the cycle temperature, its duration and the temperature increase. It is possible to activate a foundry programme with a delay.
The first programme has been factory installed - it is a popular 12-hour heating programme.
The programme of the controller also ensures the implementation of the programme according to the assumptions made, even in case of the failure and re-activation of the supply voltage.

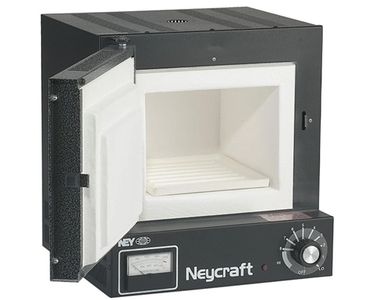

Fibre burnout furnace, insulated with space-age ceramic fiber for fast heating and cooling at low electrical cost. The firing chamber is 13" W x 13" D x 9" H (33 x 33 x 23 cm), large enough for volume jewelry making. Kilns fires to 1700° F (967° C), so you can also use it for low-fire ceramics, enameling on metal, china painting or glass fusing. A heavy steel case protects the firing chamber for long life and the chamber is supported by a double-layer steel bottom. The base lifts the furnace off the work surface. The door peephole and top vent-hole are sealed with metal covers when not in use. The door remains tightly sealed, even at high temperature, with the spring-loaded latch. Reaches 1000° F (538° C) in 30 minutes.
The digital control model uses the DTC-800 controller, eliminating the need for a pyrometer. With this feature-packed temperature controller, you can program up to eight ramps (raising or lowering the temperature at the rate you specify) and eight dwells (holding the temperature constant for the length of time you specify). Uses a type-K thermocouple, long proven for it's reliability. The controller will shut off automatically should the thermocouple fail. The controller stores up to six programs even if the power shuts off. The furnace has a one year warranty. The controller has a two year warranty. Can be shipped UPS. Shipping weight 108 lbs.
Made in USA
Made in Italy
